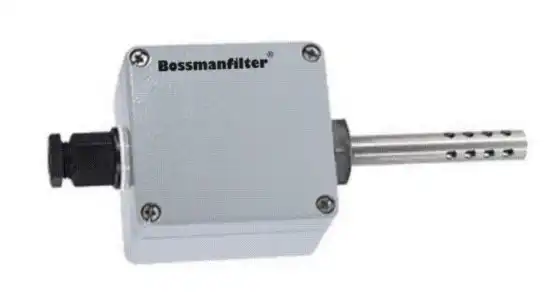

Humidity / temperature probe - OEM
High-quality and precise humidity / temperature sensor with integrated measuring transducer (output 0-10V) suitable for building automation, drying and air-conditioning technology (HVAC), outdoor or industrial applications.
Specifications
| Product | Humidity/ temperature probe |
| Humidity measuring range | 0...100% RH |
| Sensor type humidity | Capacitive humidity sensor |
| Humidity accuracy | ± 2℅ RH |
| Output scaling humidity | 0...100% RH on 0...10 V |
| Temperature measuring range | -30...+70 ℃ |
| Sensor | Pt1000, 2-wire |
| Accuracy | F 0,3 (Class B) DIN EN 60751 conform |
| Output scaling temperature | -30...+70 ℃ on 0...10 V |
| Response time temperature | T90: 25 s with protection filter |
| Tube length | 100 mm |
| Tube diameter | 12 mm |
| Tube material | Stainless steel AISI 316Ti |
| Protective filter | PE-sintered filter 25 µm, Dia 12 x 30 mm |
| Cable construction | Copper cable PVC, flat |
| Cable length | 1500 mm |
| Output signal | 2x 0...10 V |
| Connection | Screw terminal 0.75 mm2 |
| Operating voltage | 12...24 V AC/DC |
| Current consumption | <3 mA |
| Corresponds to standard article | FF-GLT-10V-EXT-TE1 |
| Weight | 0.200 kg |
| Applications |
|
