Threaded Thermowell
316 Stainless steel fabricated threaded thermowells with 1/2 " or 3/4 " BSP process thread to suit 6.0mm diameter sensors.
Specifications
| Product Name | Threaded Thermowell |
| Brand | Bossmanfilter |
| Material | 316 stainless steel |
| Temp Range | -75 to 250 ℃ |
| Length | 50,80,100,120,150,180,200,230,250,300mm or to order |
| Diameter | 12.7mm OD x 7mm ID |
| Process Thread | 1/2 " BSP and 3/4" BSP |
| Probe size | suits to 6mm or to order |
| Female therad | 1/4 " or 1/2 "BSP |
| Features |
|
| Applications |
|

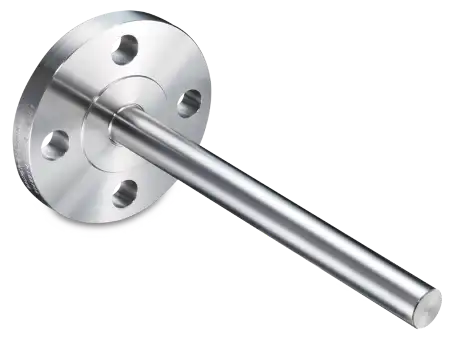

Fabricated Thermowell with Stainless Steel Flange
Fabricated thermowell assembly with 316 Stainless Steel probe and ANSI raised face flange.
Specifications
| Product Name | Fabricated Thermowell with Stainless Steel Flange |
| Brand | Bossmanfilter |
| Material | 316 stainless steel |
| Temp Range | -75 to 250 ℃ |
| Length | 50,80,100,120,150,180,200,230,250,300mm or to order |
| Diameter | 12.7mm and 15.8mm |
| Process Connection | 1 ",1.5 ",2 ",3 ",4 "- ANSI 150lb raised face flange |
| Probe size | suits to 6mm or to order |
| Female therad | 1/4 " or 1/2 "BSP |
| Laggging length | 50mm |
| Features |
|
| Applications |
|

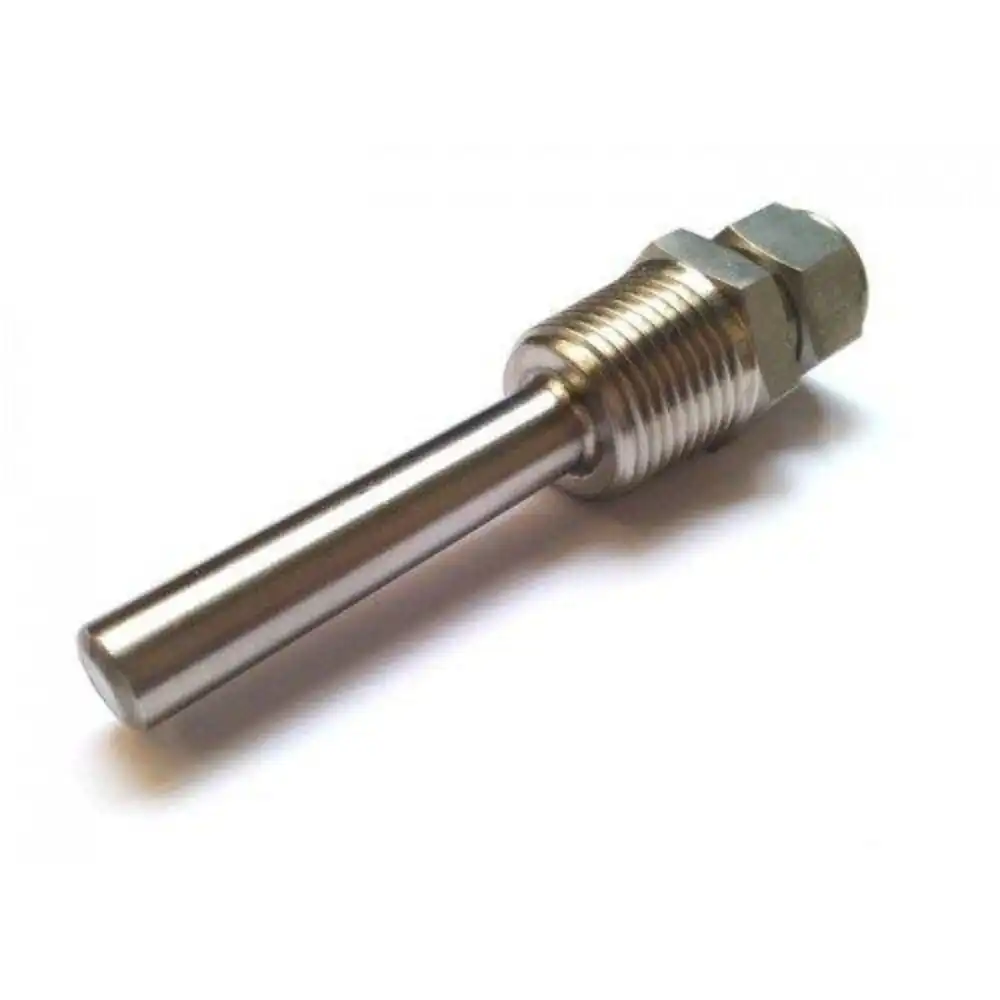

Thermowell with Integral Compression Fitting
Fabricated Thermowell with 1/2 inch integral compression fitting to suit 6.0mm diameter sensors.
Specifications
| Product Name | Thermowell with Integral Compression Fitting |
| Brand | Bossmanfilter |
| Material | 316 stainless steel |
| Temp Range | -75 to 250 ℃ |
| Length | 50,100,150,200,250,300,500 or to order |
| Diameter | 11.7mm OD x 7mm ID |
| Process Connection | 1/2 " BSP |
| Probe size | suits to 6mm or to order |
| Features |
|
| Applications |
|
