Twin Bore Ceramic Insulated Thermocouple
There are multiple types and grades of thermocouple wire. Each type of thermocouple wire has a specific combination of metal alloys. This combination is what defines the type of thermocouple. For example, a type K thermocouple is made when a wire of Nickel-Chromium is welded to a wire of Nickel-Alumel. The grade of the wire is dependent not only on the combination of alloys used, but also on the purity of those alloys.
A ceramic insulated solid conductor thermocouple with exposed tip and bead welded for high temperature applications.
Specifications
| Product Name | Twin Bore Ceramic Insulated Thermocouple |
| Brand | Bossmanfilter |
| Temp Range | 0 to 1100 ℃ |
| Length | 300mm,500mm or 1 Mtr |
| Accuracy | Class-1 |
| Features | Type K thermocouple, Exposed tip, Ceramic Mullite insulated, Optional R, S or B thermocouple, Can be cut to length |
| Applications | Kilns and ovens, Replacement elements, High temperature |

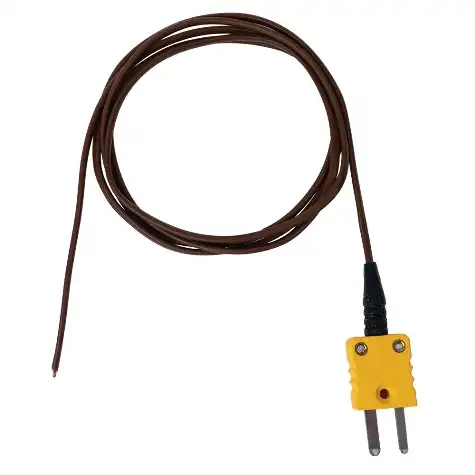

Single shot wire thermocouple
A single shot wire thermocouple sensor designed for use in environments where a water or gas tight insulation is required.
Specifications
| Product Name | Single Shot Wire Thermocouple |
| Brand | Bossmanfilter |
| Type | K or T |
| Temp Range | -75 to +250 ℃ |
| Length | 1,2 and 5 mtr or to order |
| Accuracy | Class-1m |
| Diameter | 0.376mm |
| Junction | Exposed |
| Material | PFA |
| Termination | Stripped tails,mini or standard Plug |
| Features | Gas, Steam & Water tight , Exposed junction for rapid response, Extremely resistant to chemicals, oils and fluids, Class 1 accuracy,Available in type K or T |
| Applications | Hygienic Autoclaves, Aerospace, Sterliser Applications |

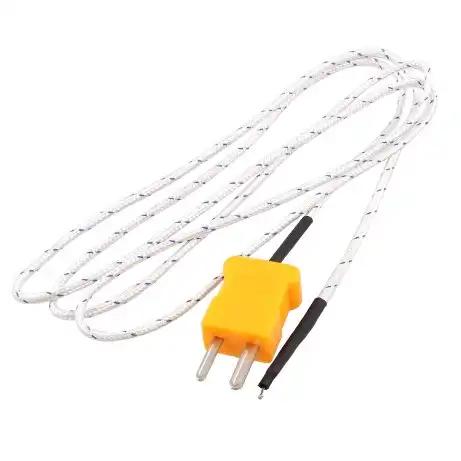

Fibreglass Exposed Junction Thermocouple
Fibreglass insulated wire thermocouple with exposed junction for fast response when measuring temperatures up to 400 ℃.
Specifications
| Product Name | Fibreglass Exposed Junction Thermocouple |
| Brand | Bossmanfilter |
| Temp Range | -60 to +400 ℃ |
| Length | 1,2 and 5 mtr or to order |
| Accuracy | Class-1 |
| Junction | Exposed |
| Material | 1 / 0.3 Fibreglass insulated |
| Termination | Stripped tails,mini or standard Plug |
| Features |
|
| Applications |
|

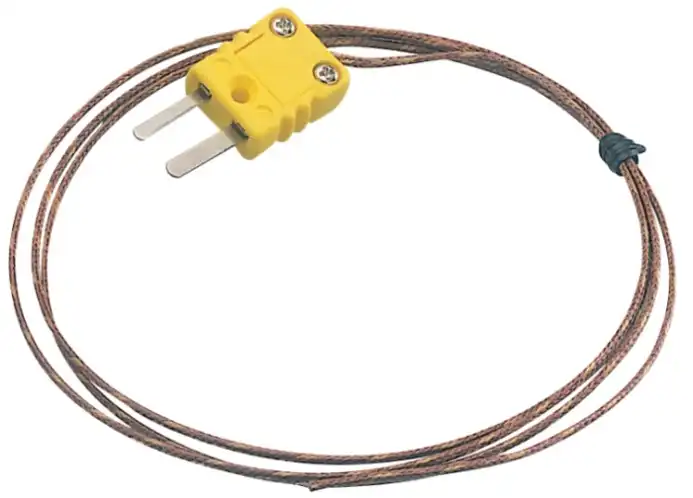

Hermetically Sealed Thermocouple
A ceramic insulated solid conductor thermocouple with exposed tip and bead welded for high temperature applications.
Specifications
| Product Name | Hermetically Sealed Thermocouple |
| Brand | Bossmanfilter |
| Temp Range | -60 to +400 ℃ |
| Length | 1,2 and 5 mtr or to order |
| Accuracy | Class-1 |
| Junction | Exposed |
| Material | 1 / 0.3 Fibreglass insulated |
| Termination | Stripped tails,mini or standard Plug |
| Features |
|
| Applications |
|

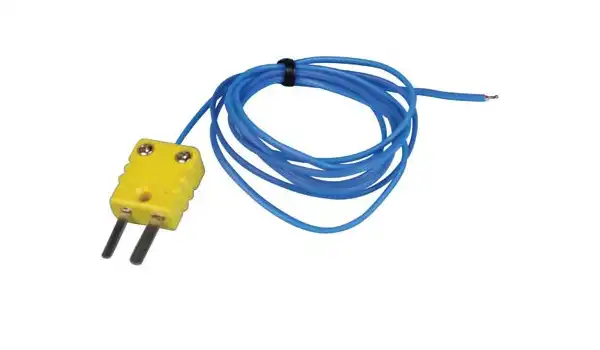

PFA Exposed Junction Thermocouple
Fine wire twisted pair thermocouple with exposed tip for fast response in measurement and control applications.
Specifications
| Product Name | PFA Exposed Junction Thermocouple |
| Brand | Bossmanfilter |
| Type | K,T,J |
| Temp Range | -75 to +250 ℃ |
| Length | 1,2 and 5 mtr or to order |
| Diameter | 1.6 x 1.3 nominal |
| Junction | Exposed |
| Material | 1 / 0.3 PFA insulated |
| Termination | Stripped tails,mini or standard Plug |
| Features |
|
| Applications |
|
